Product Description
Autel MaxiTPMS TS508WF WiFi Version is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn.

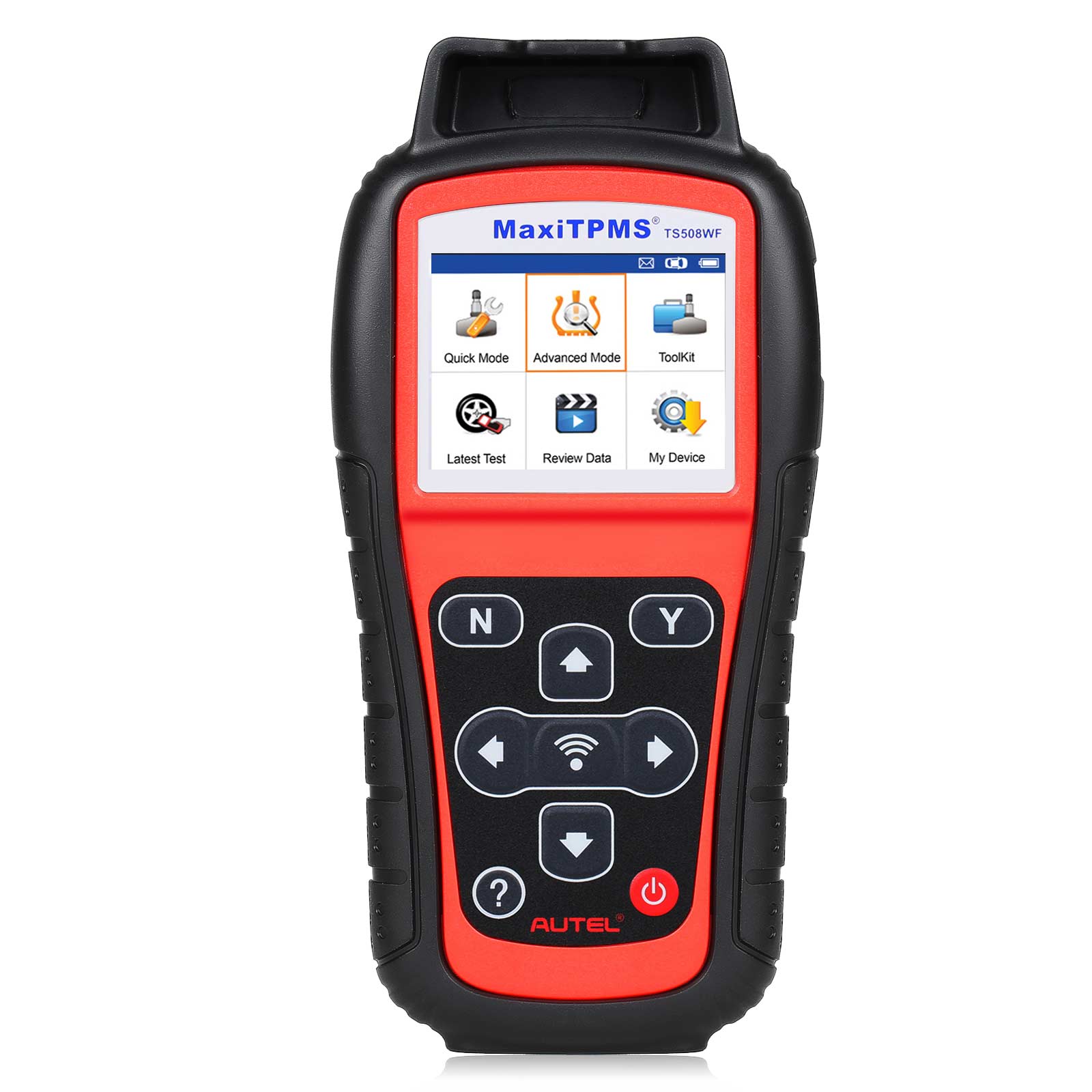

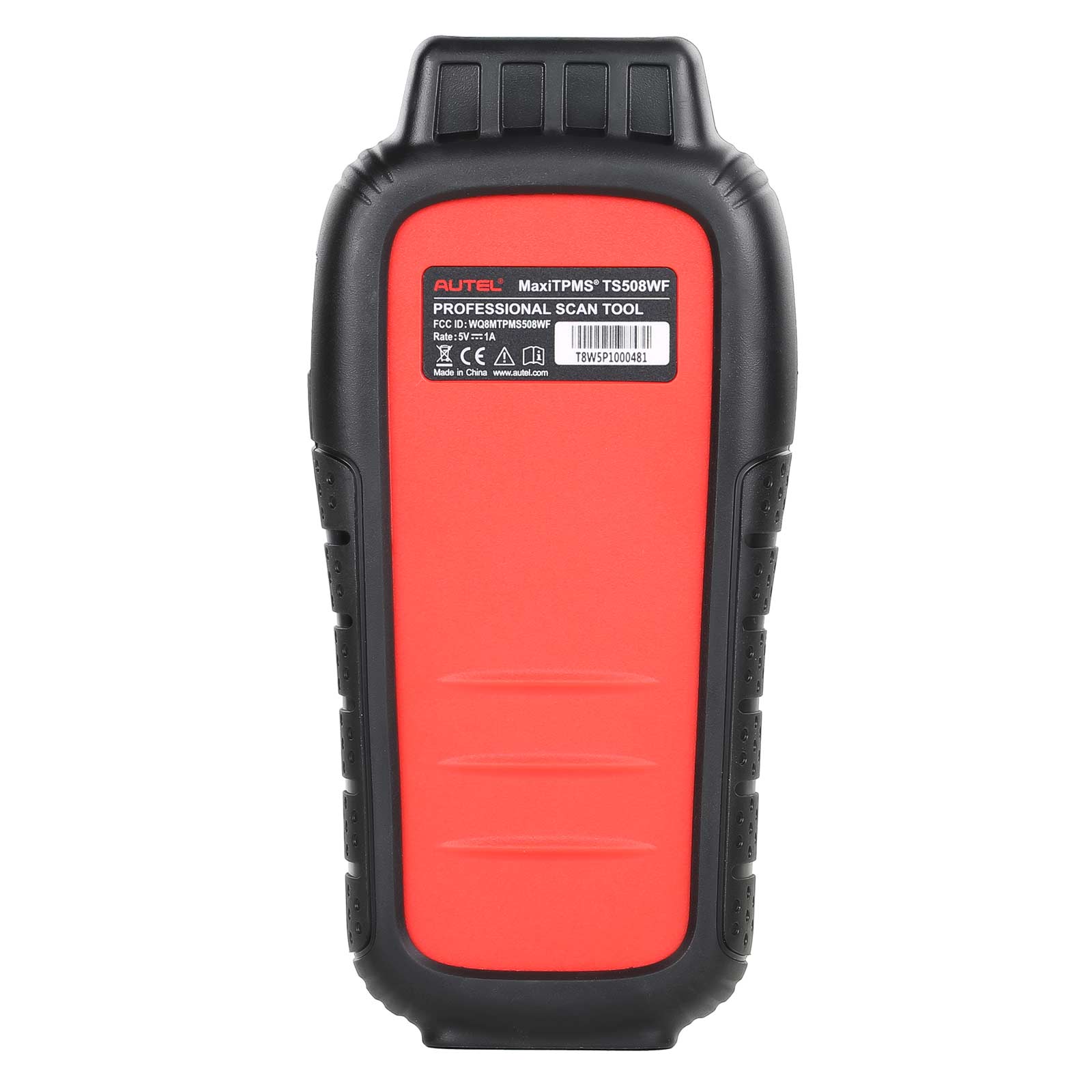

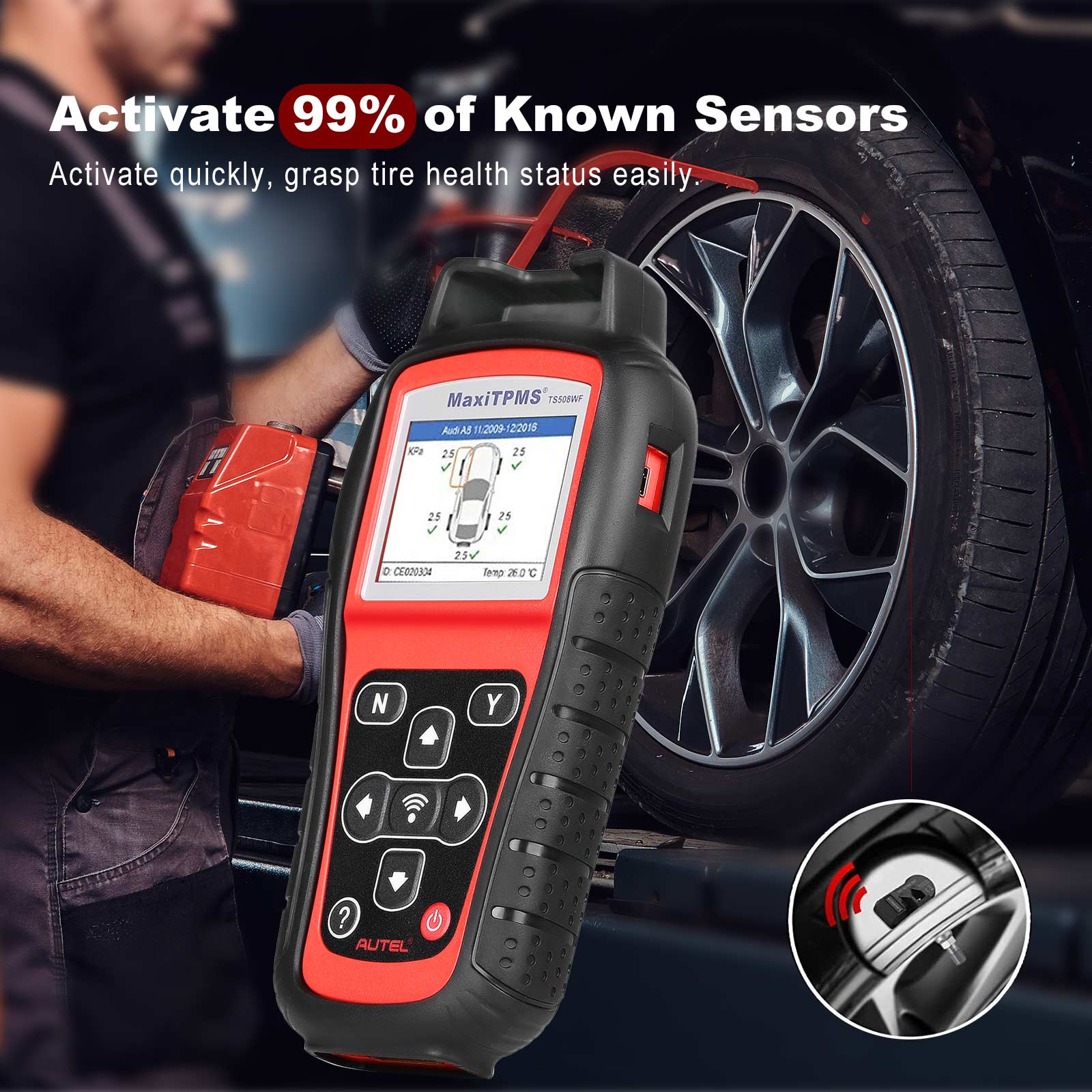

Autel MaxiTPMS TS508WF TPMS Service Tool
What is Autel MaxiTPMS TS508WF?
The TS508WF is a TPMS service tool. It is Autel’s first non-tablet tool providing Wi-Fi software updates. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508WF displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests. It includes an OBDII cable, a 1-year tool warranty, and free lifetime software updates available with purchase.

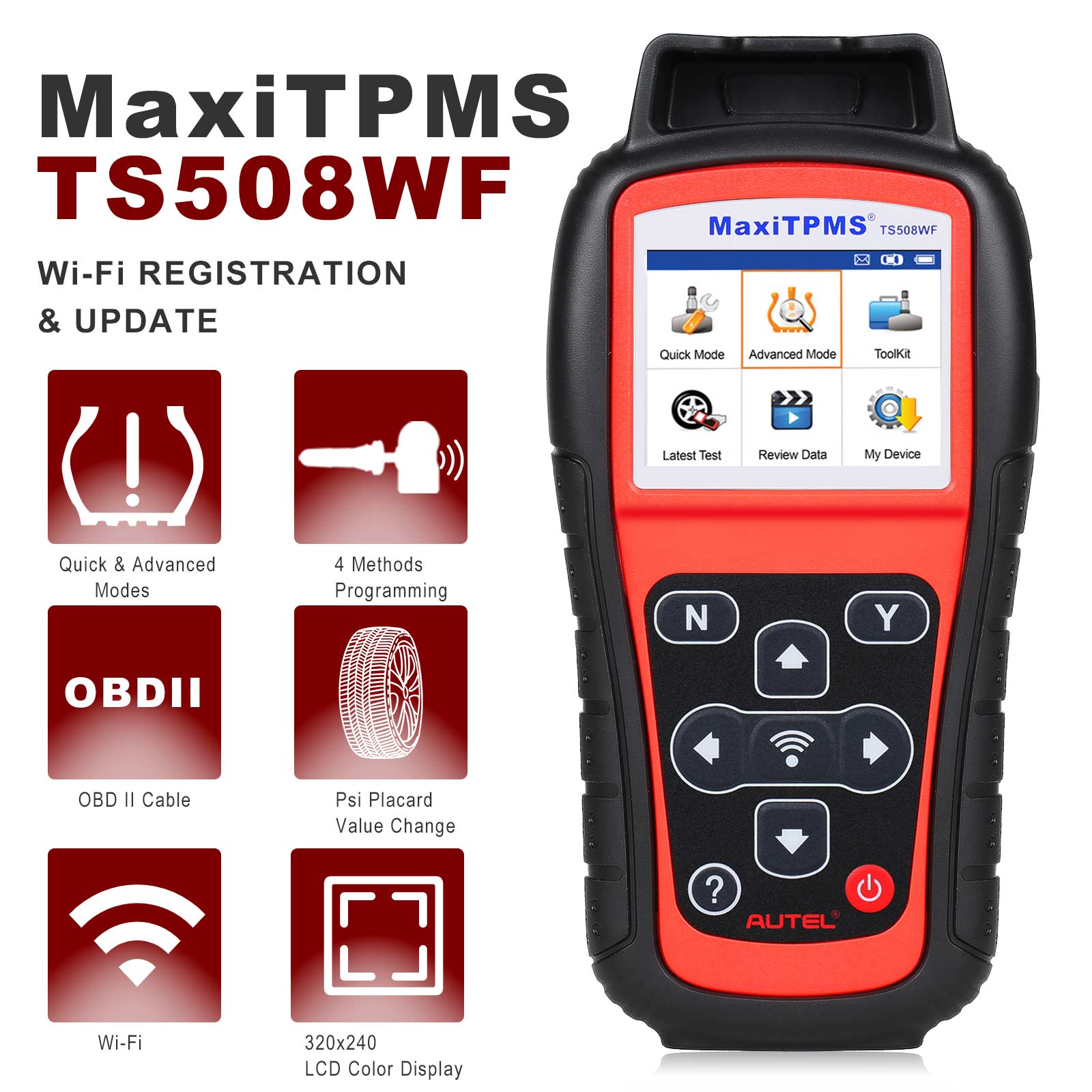

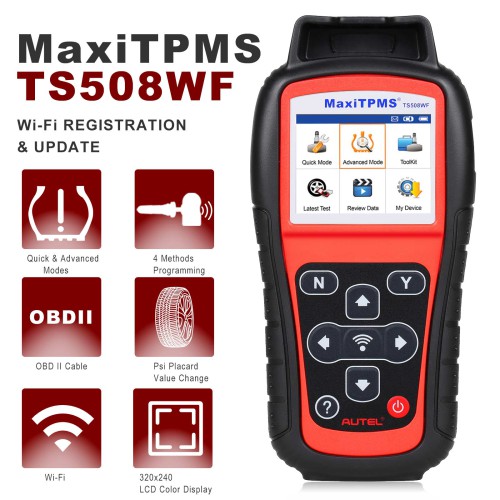

Autel MaxiTPMS TS508WF Features:
• Quick Mode & Advanced Mode Options
• Read/Activate/Relearn All Known Sensors
• Detect & Display TPMS System Faults
• Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
• Placard Value Reset on Supported Vehicles
• Update software directly from tool-enabled Wi-Fi
• 4 Programming Options: MX-Sensors Only
• TPMS System Status Screen
• Key Fob Signal Test
• FREE Lifetime Software (lifetime of the tool) & 1Yr Warranty
• Display Sensor ID, Battery Life (on supported sensors), and Psi
• Includes OBDII Cable
• 2.3" Color Display 320x240
• Easy-To-Use Navigation
• 3200mAh Lithium-polymer Battery
• With 4pcs Autel MX-Sensor 315MHz+433MHz 2 in 1 Universal Programmable TPMS Sensor
WI-FI UPDATE
The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.
TWO TPMS SERVICE MODES
The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
QUICK MODE / ADVANCED MODE COMPARISON
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, MX-Sensor program and sensor position relearn.

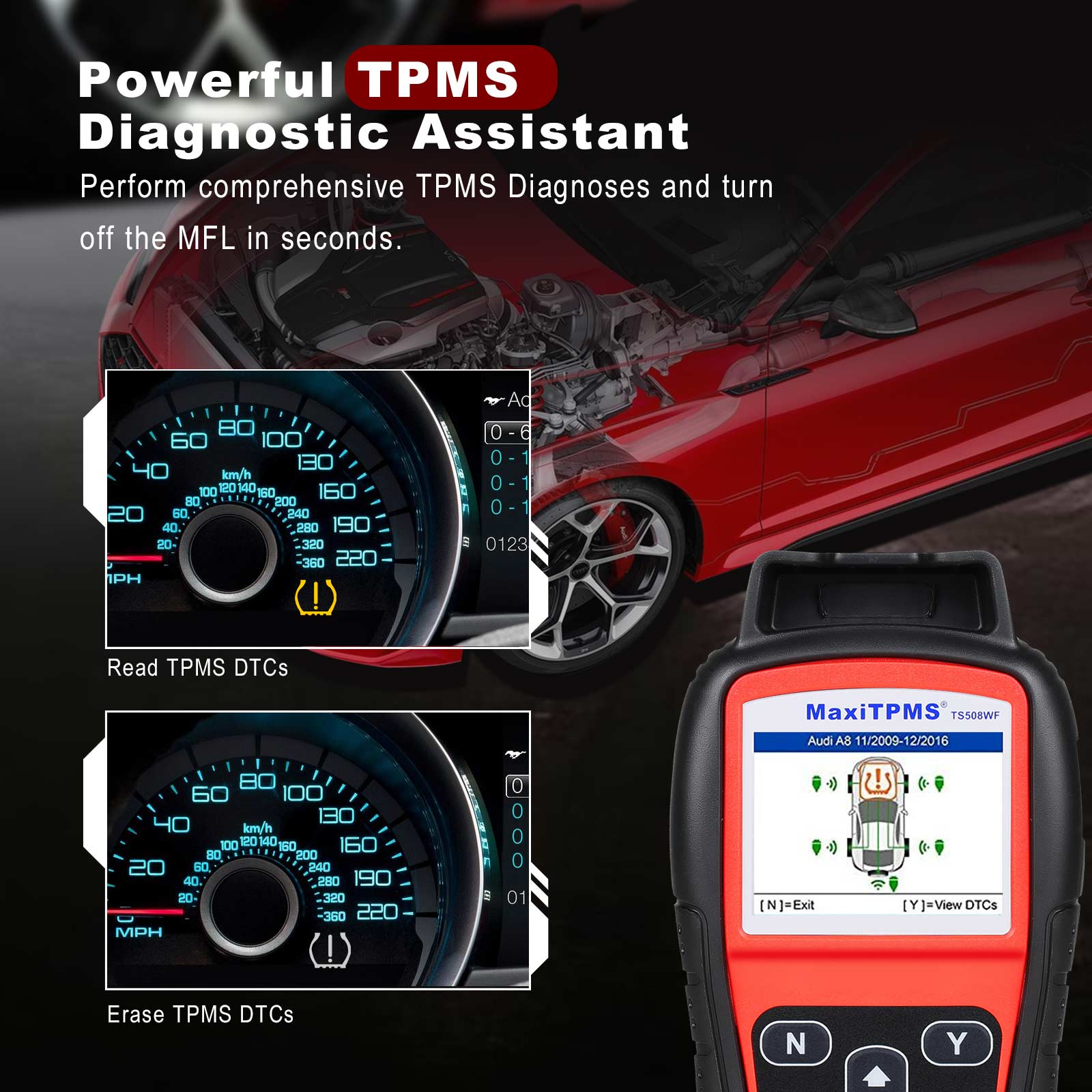

EXCLUSIVE TPMS STATUS SCREEN
1. Read ECU sensor ID
2. Check sensor ID and ECU ID matching condition
3. Read DTCs from ECU and erase DTCs
4. View DTCs detail description

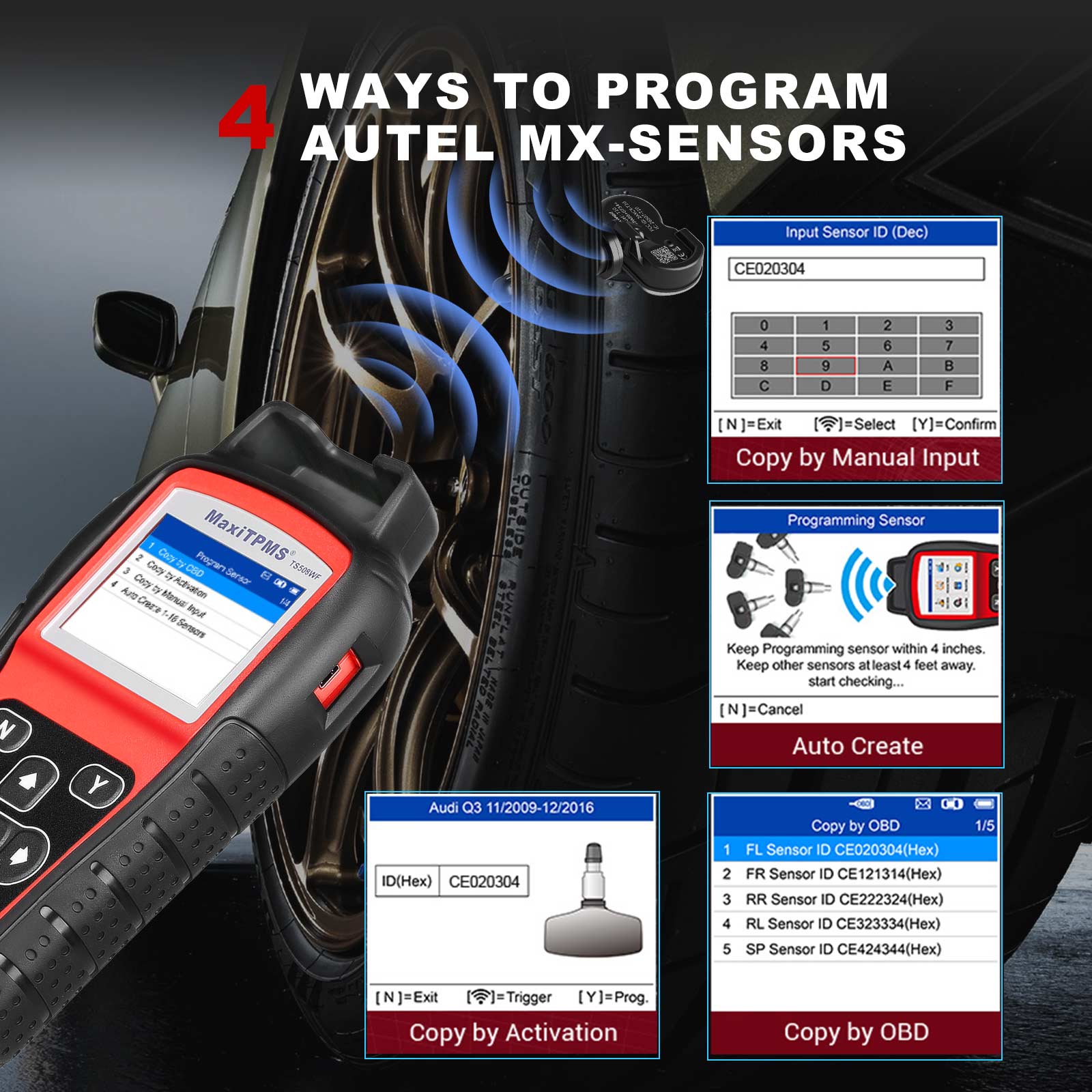

FOUR MX-SENSOR PROGRAMMING OPTIONS
1. Copy By Activation
2. Copy By Manual Input
3. Auto Create 1-16
4. Copy By OBD
MaxiTPMS TS508WF Specifications:
Display |
TFT color display (320 x 240 dpi) |
Power |
3.7 V Li-polymer battery; 3200 mAh |
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
Dimensions (LxWxH) |
215 mm (8.46") / 105 mm (4.13") / 37 mm (1.46") |
Weight |
0.39 kg (0.86 lb.) |

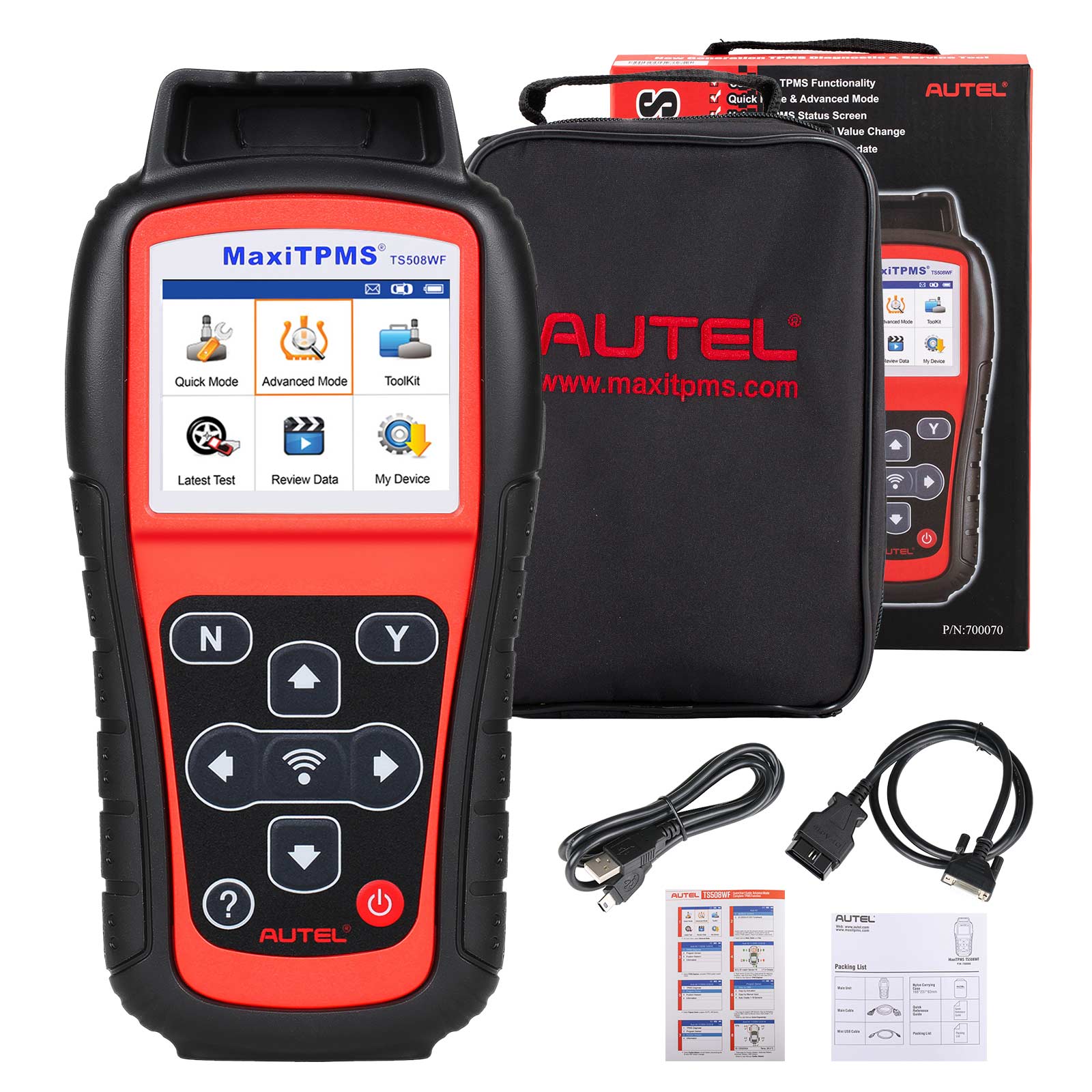

Autel TS508WF Package Includes:
1pc x Autel MaxiTPMS TS508WF unit
1pc x OBD II cable
1pc x USB cable
1pc x Carrt case
1pc x AC Adapter
1pc x User Manual
